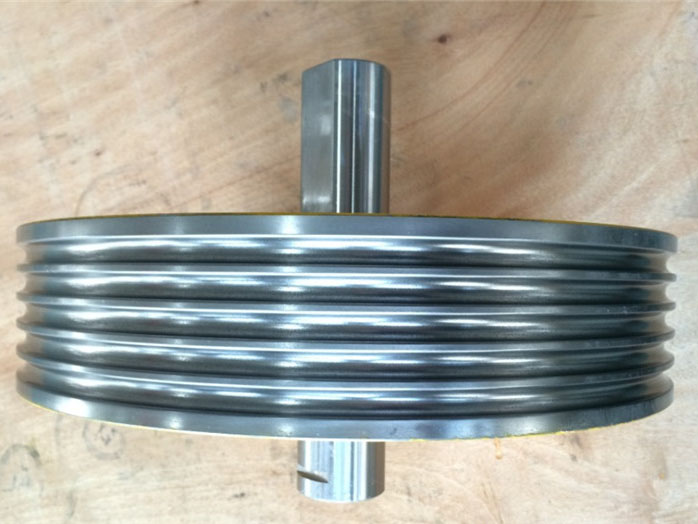

Deflector Sheave In Elevator

Short Description:

1.Increase the distance between the car and the counterweight and change the direction of movement of the wire rope.

2.The elevator guide wheel has a pulley structure, and its role is to save the effort of the pulley block.

3.Provide MC nylon Deflector Sheave and Cast Iron Deflector Sheave.

4.We provide what you want, it is a joy to be trusted! I will never fail your trust!


Product Detail

Product Tags

Product Parameters

Product Name

Elevator Deflector Sheave

Diameter

Φ200 - Φ640

Number of Slots

2-10

Rope

6.5 - 16

Slot Pitch

12-25

The role of elevator guide wheels

1.Increase the distance between the car and the counterweight and change the direction of movement of the wire rope.

2.The elevator guide wheel has a pulley structure, and its role is to save the effort of the pulley block.

3.Provide MC nylon Deflector Sheave and Cast Iron Deflector Sheave.

4.We provide what you want, it is a joy to be trusted! I will never fail your trust!

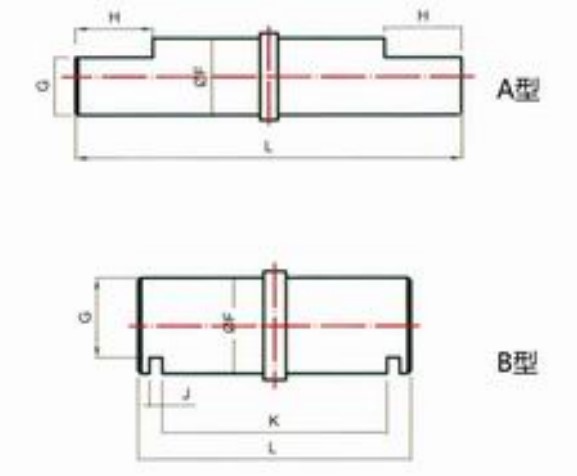

1
2

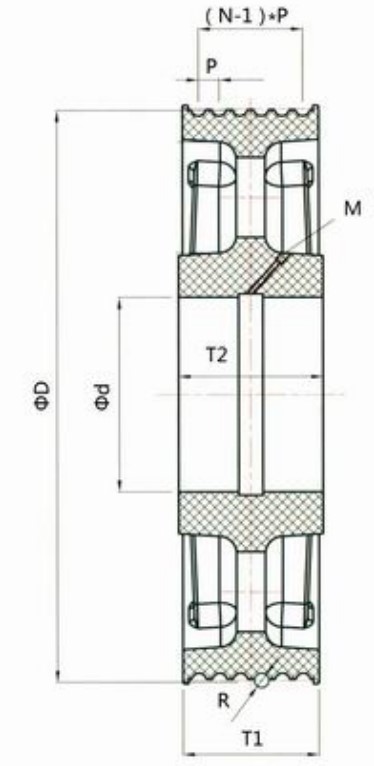

Model

Diameter(D)

Rope

THY-200-01

200

3*Φ6.5-12

THY-200-02

200

4*Φ6.5-13

THY-200-03

200

4*Φ6.5-15

THY-240-01

240

3*Φ8-12

THY-240-02

240

4*Φ8-13

THY-240-03

240

4*Φ8-13

THY-250-01

250

3*Φ8-13

THY-320-01

320

3*Φ8-12

THY-320-02

320

4*Φ8-12

THY-320-03

320

5*Φ8-12

THY-320-04

320

6*Φ10-15

THY-320-05

320

7*Φ10-15

THY-320-06

320

8*Φ8-12

THY-360-01

360

6*Φ10-16

THY-360-02

360

7*Φ10-16

THY-400-01

400

4*Φ10-16

THY-400-02

400

5*Φ10-16

THY-400-03

400

6*Φ10-16

THY-400-04

400

7*Φ10-16

THY-400-05

400

8*Φ10-16

THY-440-01

440

5*Φ10-16

THY-480-01

480

5*Φ12-18

THY-480-02

480

6*Φ12-18

THY-520-01

520

5*Φ10-16

THY-520-02

520

5*Φ13-19

THY-520-03

520

5*Φ13-24

THY-520-04

520

6*Φ13-20

THY-520-05

520

6*Φ13-24

THY-640-01

640

5*Φ16-25

THY-640-02

640

6*Φ16-25

THY-640-03

640

7*Φ16-25

THY-640-04

640

8*Φ16-25

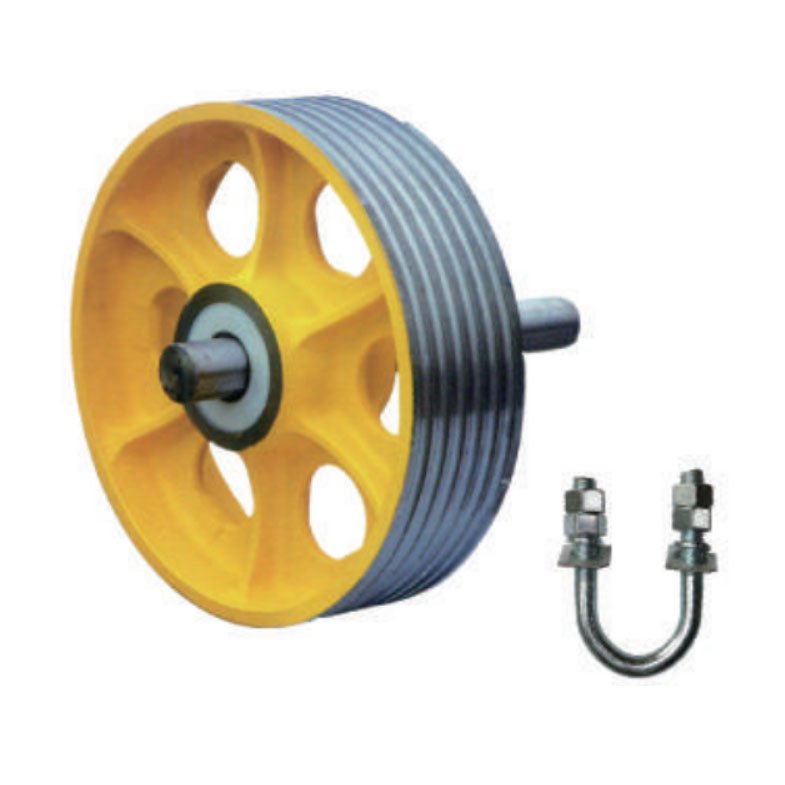

The rope pulley is an important accessory in the elevator, and it is a kind of movable pulley used in the elevator. The movable pulley is usually set on the upper part of the car frame and the counterweight frame. There are two materials: cast iron wheel and nylon wheel. According to the machine room elevator sheaves, it is divided into machine room guide sheaves, car top sheaves and counterweight sheaves;machine room-less elevator sheaves are divided into car bottom sheaves and counterweight sheaves. Different traction ratios can be constructed by hauling the rope around the reverse sheave as required. Elevator sheaves are generally composed of wheel bodies, bearings, shafts, retaining rings, bushings, etc., and can be used with U-bolts.

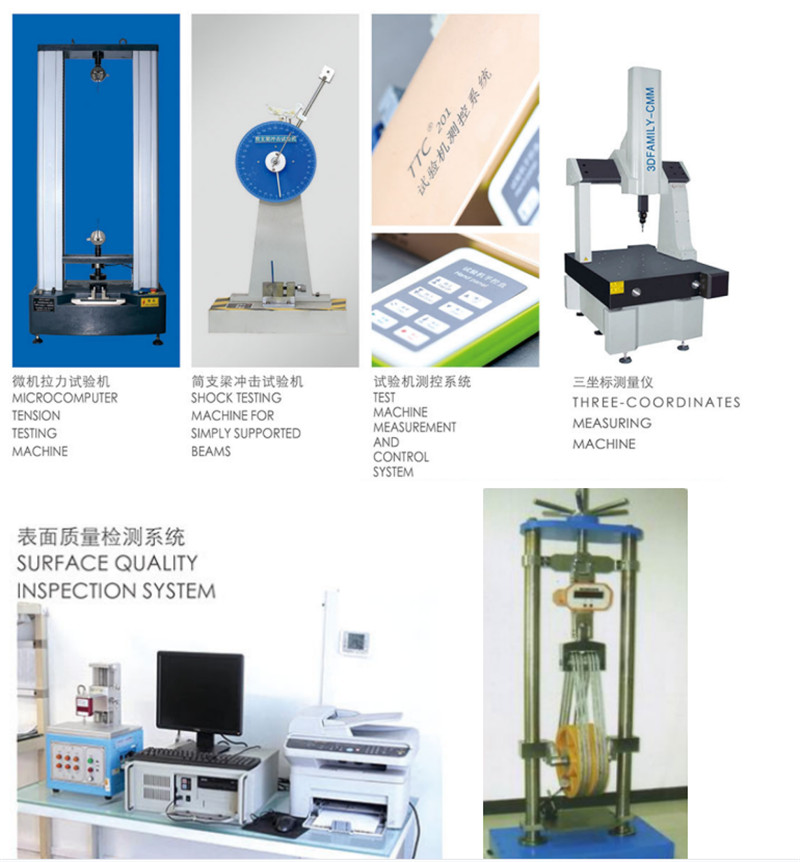

In order to ensure the safe use of elevator wheels, we have passed rigorous calculations and practices from design to actual pressure test and aging test to ensure that customers can use high-quality products.

Features of MC nylon wheels

1. Green and environmental protection, beautiful appearance;

2. Low cost and good anti-aging performance;

3. Light weight, small moment of inertia, and convenient assembly

4. Low noise and good shock absorption performance;

5. Creep resistance and good resilience;

6. High-speed centrifugal casting of high-molecular structure nylon material has fine internal structure, uniform structure, good dynamic balance and easy quality control.

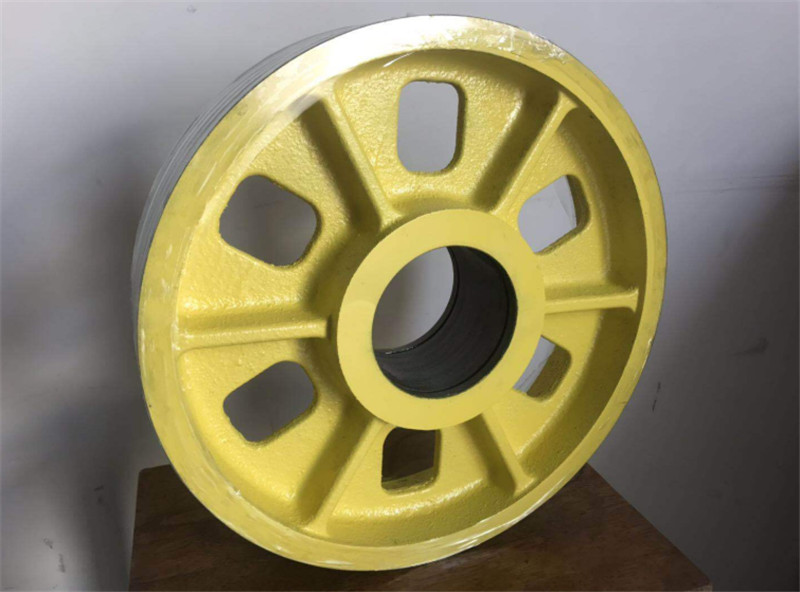

Features of cast iron wheels

1. Wear-resistant and long service life;

2. Better stability and wider application range;

3. High strength, not easy to jump or slip;

4. The surface is not easily damaged by the steel wire rope;

5. Increase the contact area of the rope pulley and increase the friction;

6. Increase the reliability of system transmission.
