2 Panel Center Opening Standard Door Operator THY-DO-J2500

Short Description:

TOP 10 Elevator Parts Exporter In China

Our Advantages

1.Fast Delivery

2.The transaction is just the beginning, the service never ends

3.Type: Door Operator THY-DO-J2500

4.We can provide synchronous and asynchronous door operator systems of BST,NBSL,OULING, ES,YS, HD and other brands.

5.Trust is happiness! I will never fail your trust!


Product Detail

Product Tags

Our Advantages

1.Fast Delivery

2.The transaction is just the beginning, the service never ends

3.Type: Door Operator THY-DO-J2500

4.We can provide synchronous and asynchronous door operator systems of BST,NBSL,OULING, ES,YS, HD and other brands.

5.Trust is happiness! I will never fail your trust!

 Features of 2 Panel Center Opening Standard door machines in THY-DO-J2500

1. Using AC permanent magnet synchronous motor, low-speed torque, high transmission efficiency.

2. The professionally developed door machine controller and the optimized design of electromechanical integration ensure the optimal closed-loop control of speed, position and torque. The operating curve of the door can be adjusted intelligently and adaptively in real time, with strong anti-interference ability.

3. It is equipped with integrated car door lock synchronous door knife, simple structure, safe and reliable.

4. The product meets the requirements of the latest GB7588/XD1, EN81-20/EN81-50 and ROHS standards.

Motor:
1. AC induction motor can use vector control and VVVF control. If VVVF control adopted, speed m'mdrive several similar motors.
2. Vector control, AC induction motor only needs speed information, angle information are not necessary. Therefore,encoder only adopts increment. Besides, AC induction motor operates without initial position, during application of door system, not necessary to study pole position and absolute encoder.
3. AC induction motor has no demagnetization problem. AC motor stall torque is rather big, can be applied to more door types.

Controller:
1. The method of control is simple, same controller can drive several similar motors.
2. It is applicable to door open width with heavy load.

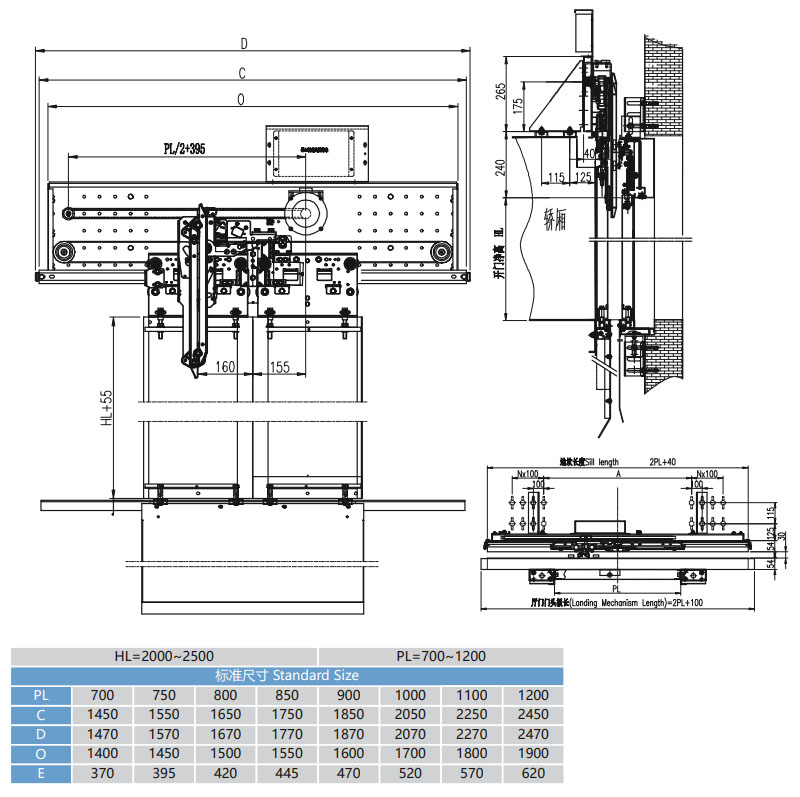

Opening Range:
1. Opening width:700~1200mm, 2 panels center opening

2. Opening height: 2000mm~2500mm

Door Panel Finish:

painted, stainless steel(hairline, mirror, etching)
