Energy Consuming Hydraulic Buffer

Short Description:

THY series elevator oil pressure buffers are in line with TSG T7007-2016, GB7588-2003+XG1-2015, EN 81-20:2014 and EN 81-50:2014 regulations. It is an energy-consuming buffer installed in the elevator shaft. A safety device that plays a role of safety protection directly under the car and counterweight in the pit.


Product Detail

Product Tags

Product Description

THY series elevator oil pressure buffers are in line with TSG T7007-2016, GB7588-2003+XG1-2015, EN 81-20:2014 and EN 81-50:2014 regulations. It is an energy-consuming buffer installed in the elevator shaft. A safety device that plays a role of safety protection directly under the car and counterweight in the pit. According to the elevator's rated load and rated speed, the type of adaptation is matched. When the oil pressure buffer is impacted by the car and the counterweight, the plunger moves downwards, compressing the oil in the cylinder, and the oil is sprayed to the plunger cavity through the annular orifice. When the oil passes through the annular orifice, because the active cross-sectional area suddenly decreases, a vortex is formed, causing the particles in the liquid to collide and rub against each other, and the kinetic energy is converted into heat to be dissipated, which consumes the kinetic energy of the elevator and makes the car or The counterweight stopped gradually and slowly. The hydraulic buffer uses the damping effect of liquid activity to buffer the impact of the car or the counterweight. When the car or the counterweight leaves the buffer, the plunger resets upward under the effect of the return spring, and the oil flows back to the cylinder from the head to recover. Normal condition. Because the hydraulic shock absorber is buffered in a way that consumes energy, it has no rebound effect. At the same time, because of the effect of the variable rod, when the plunger is pressed down, the cross-sectional area of the annular orifice gradually becomes smaller, which can make the elevator car move closer to uniform deceleration. Therefore, the hydraulic buffer has the advantage of smooth buffering. Under the same operating conditions, the stroke required by the hydraulic buffer can be reduced by half compared with the spring buffer. Therefore, the hydraulic buffer is suitable for elevators of various speeds.

Product Parameters

Type

Roted speed(m/s)

Quality range(kg)

Compression travel(mm)

Free state(mm)

Fix size(mm)

Oil mass(L)

THY-OH-65

≤0.63

5004600

65

355

100×150

0.45

THY-OH-80A

≤1.0

15004600

80

405

90×150

0.52

THY-OH-275

≤2.0

8003800

275

790

80×210

1.50

THY-OH-425

≤2.5

7503600

425

1145

100×150

2.50

THY-OH-80

≤1.0

6003000

80

315

90×150

0.35

THY-OH-175

≤1.6

6003000

175

510

90×150

0.80

THY-OH-210

≤1.75

6003600

210

610

90×150

0.80

 Our advantages

1. Fast Delivery

2. The transaction is just the beginning, the service never ends

3. Type:Buffer THY

4. We can provide safety components such as Aodepu,Dongfang,Huning, etc.

5. Trust is happiness! I will never fail your trust!

Product display

THY-OH-65

THY-OH-65

THY-OH-80

THY-OH-80

THY-OH-80A

THY-OH-80A

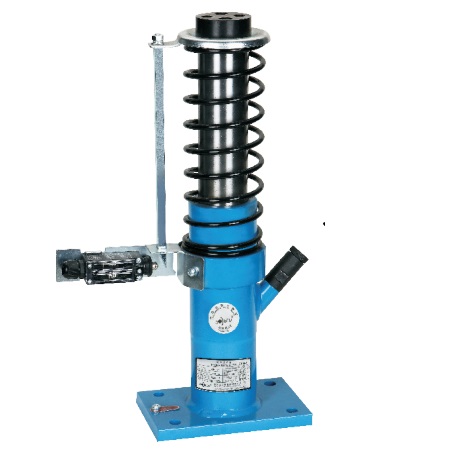

THY-OH-175

THY-OH-175

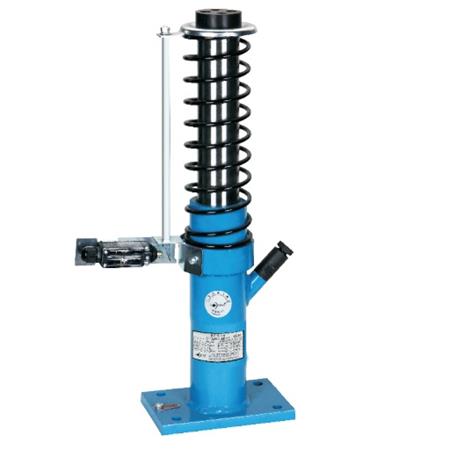

THY-OH-210

THY-OH-210

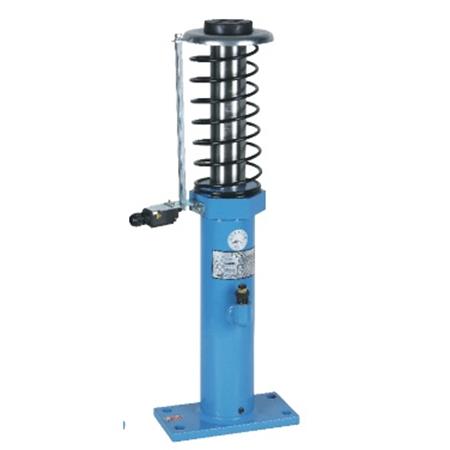

THY-OH-275

THY-OH-275

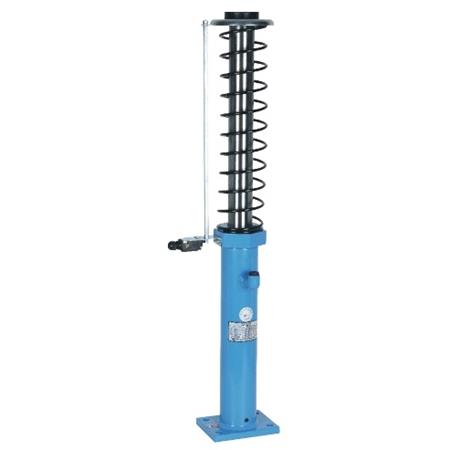

THY-OH-425

THY-OH-425
