Passenger Traction Elevator Of Machine Room

Short Description:

Tianhongyi elevator adopts permanent magnet synchronous gearless traction machine, advanced frequency conversion door machine system, integrated control technology, light curtain door protection system, automatic car lighting, sensitive induction and more energy saving;


Product Detail

Product Tags

Product Description

Tianhongyi elevator adopts permanent magnet synchronous gearless traction machine, advanced frequency conversion door machine system, integrated control technology, light curtain door protection system, automatic car lighting, sensitive induction and more energy saving; everything for the sake of customers, in the passenger elevator , Continuous pursuit of perfection in safety, comfort and power, giving people a sense of peace and comfort; Widely used in hotels, shopping malls, high-rise residential buildings, high-end office buildings and high-rise buildings, it is an ideal vertical transportation tool.

Product Parameters

Load(kg)

Speed (m/s)

Control mode

Internal car size (mm)

Door size (mm)

Hoistway(mm)

B

L

H

M

H

B1

L1

450

1

VVVF

1100

1000

2400

800

2100

1800

1650

1.75

630

1

1100

1400

2400

800

2100

1800

2050

1.75

800

1

1350

1400

2400

800

2100

1900

2050

1.75

2

2.5

1000

1

1600

1400

2400

900

2100

2150

2050

1.75

2

2.5

1250

1

1950

1400

2400

1100

2100

2550

2050

1.75

2

2.5

1600

1

2000

1750

2400

1100

2100

2950

2250

1.75

2

2.5

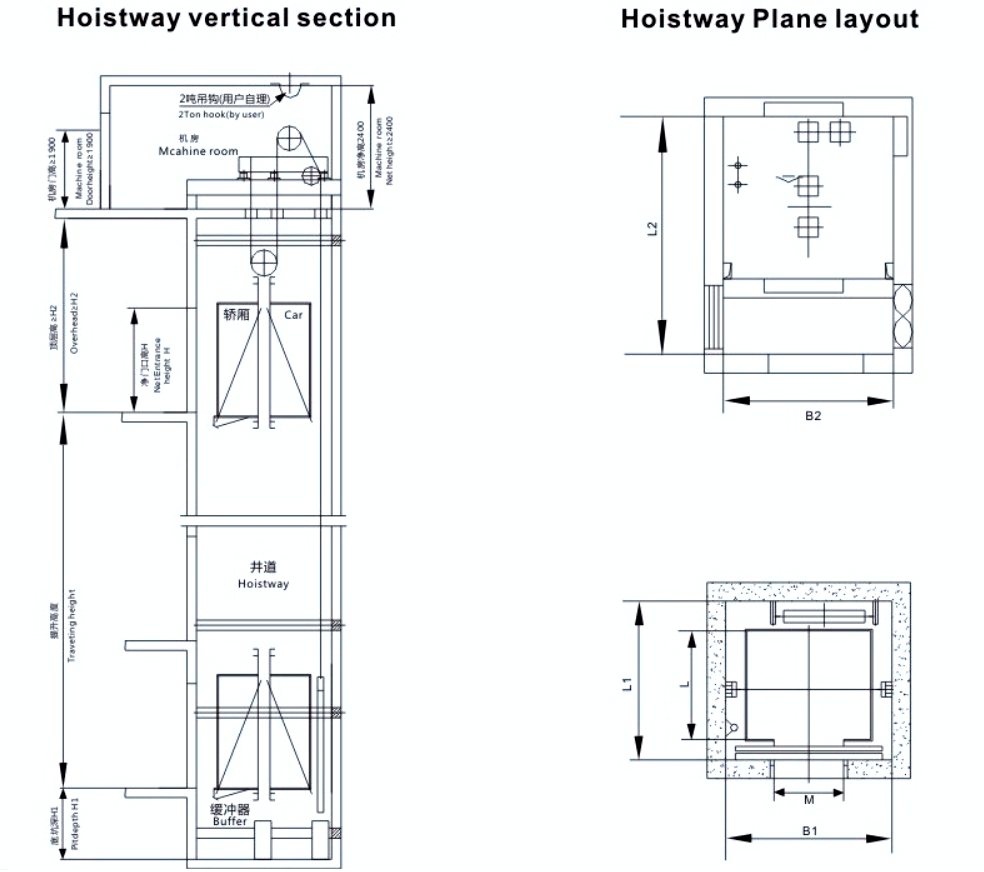

Product parameter diagram

2

 Our advantages

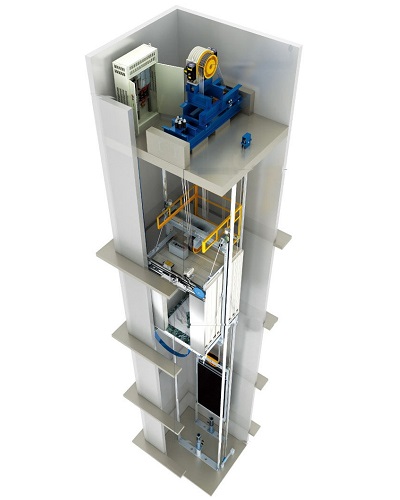

1. The passenger elevator in the small machine room adopts a reasonable civil construction layout, which realizes the same size of the machine room area and the hoistway, reduces the height of the machine room, and effectively saves the space occupancy rate of the machine room;

2. The design of the small computer room makes the hoistway space and the architectural style more integrated, and greatly reduces the constraints of the architectural appearance design and the difficulty of the computer room layout;

3. Reducing the protruding area of the top floor not only reduces the space cost of the building, but also stimulates the unlimited creativity of architects.

More functions, higher performance

1. Aseptic car design, adding negative ion generator, automatic ventilation system, enough ventilation, the car air is fresh, natural and healthy.

2. Car wall noise reduction technology, low-noise traction machine design, the noise can be as low as 43db.

3. More wonderful voice prompts, intelligent voice buttons, easy to achieve voice playback.

4. The most comfortable lighting design with 100Lux illuminance, elegant and harmonious.

5. The height of the car is more comfortable, suitable for public environment, and the space is open and comfortable.

6. LED lights have long service life, less power consumption, and more energy saving.

Product details

1. Perfect door protection system, opening and closing with a degree, safe and method
(1)The new generation of permanent magnet door machine has greater torque, higher efficiency, and better operation stability and sensitivity;
(2)The omni-directional infrared light curtain protection barrier can respond to any person or object entering the detection area, with high safety performance and more freedom of entry and exit.

2. Sleep energy saving measures
When the elevator is in no call demand, the lighting and fan of the car will be automatically turned off, so as to achieve the effect of saving energy.

3. Safe, efficient, precise and stable
(1)Car positioning technology---high precision, zero error;
(2)Advanced sensors provide high-precision real-time signal feedback on the operating state of the motor rotor, achieving millimeter-level accuracy in positioning the car running on the hoistway, and achieving almost error-free leveling.

4. Shock absorption function
The unique shock absorption function and the car design with buffer function can effectively absorb and relieve the vibration of the elevator in operation, making the ride more comfortable.

5. Intelligent central microprocessor
Using intelligent central microprocessor, VVVF variable frequency variable pressure door machine control system, with high stability and excellent sensitivity, realizes the gentle, smooth and safe opening and closing of the elevator.

6. Center suspension system
The low-friction center suspension system effectively reduces noise and vibration, improves passenger comfort, and reduces noise interference to the surrounding environment.

FAQS

How could I trust you?

We have exported to many countries, such as Southeast Asia, Mid-east, Jordan, Malaysia, Kuwait, Saudi Arabia, Iran, South Asia, Bangladesh, Pakistan, India, Kazakhstan, Tajikistan, Africa, Kenya, Nigeria etc.our all customers are satisfied with our product quality and services.

What the parameters should I need to provide before asking price for an elevator?

A) .What is the loading capacity of your elevator?  ( 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg etc..) B).How many floors/stops/landing door? C).What's the shaft size?(width and depth) D).Is there a machine room or without machine room? E).The step width, height and angle for escalator.

How about your payment term & trade term?

 T/T or Irrevocable L/C at sight etc. EXW/FOB/ CFR/ CIF/CIP/CPT is workable with the help of our reliable forwarder. If you have your own forwarder, you can handle the shipment by yourself.

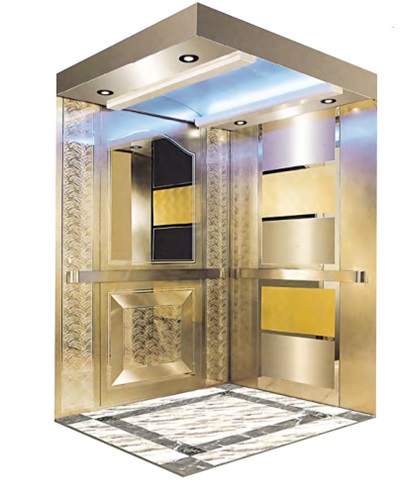

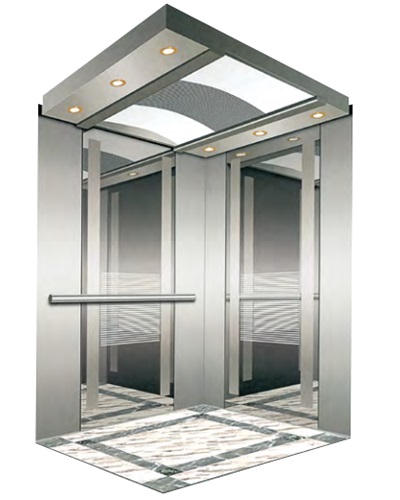

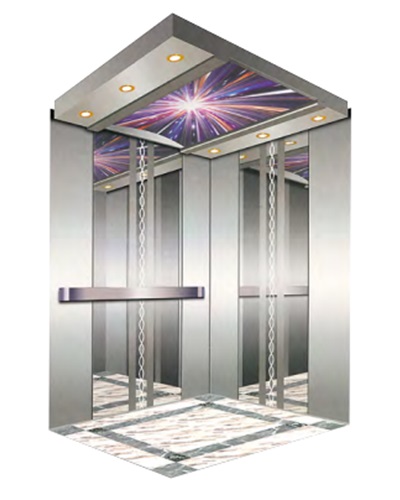

Product display

5
3
4
2
