Cost-Effective Small Home Elevator

Short Description:

Load(kg): 260, 320, 400
Reted speed(m/s): 0.4, 0.4, 0.4
Car size(CW×CD): 1000*800, 1100*900,1200*1000
Overhead height(mm): 2200


Product Detail

Product Tags

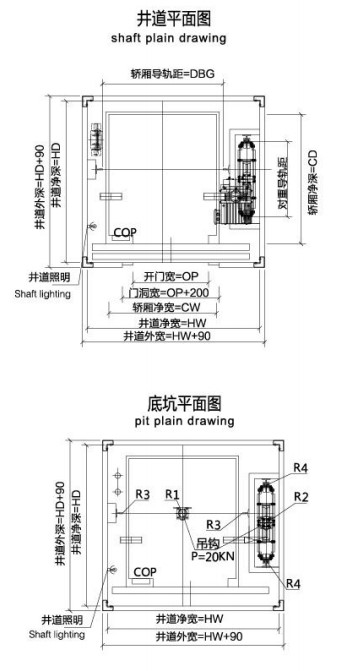

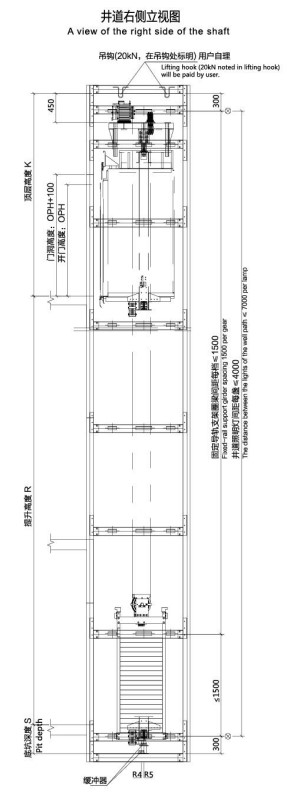

Gantry type structure home elevator product parameter diagram

Gantry type structure home elevator(Couterweight side placement)

Gantry type structure home elevator product parameters

Load(kg)

260

320

400

Reted speed(m/s)

0.4

0.4

0.4

Car size(CW×CD)

800*1000

900*1100

1000*1200

Overhead height(mm)

2200

Open the door way

Swing door

Side open

Center open

Side open

Center open

Side open

Door-opening size(mm)

800*2000

750*2000

650*2000

800*2000

700*2000

800*2000

Shaft size(mm)

1400*1100

1400*1300

1500*1350

1500*1400

1600*1450

1600*1500

Overhead depth(mm)

≥2800

Pit depth(mm)

≥500

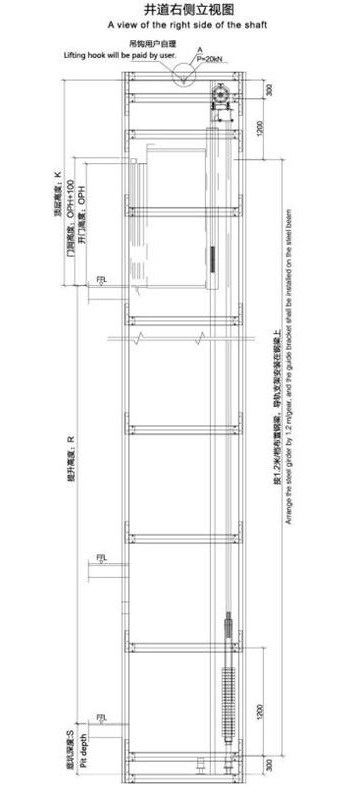

Rucksack type home elevator product parameter diagram

10
12

Rucksack type home elevator(Couterweight postposition)

Rucksack type home elevator product parameters

Load(kg)

260

320

400

Reted speed(m/s)

0.4

0.4

0.4

Car size(CW×CD)

1000*800

1100*900

1200*1000

Overhead height(mm)

2200

Open the door way

Swing door

Side open

Swing door

Side open

Swing door

Side open

Door-opening size(mm)

800*2000

650*2000

800*2000

700*2000

800*2000

800*2000

Shaft size(mm)

1150*1300

1150*1500

1250*1400

1250*1600

1350*1500

1350*1700

Overhead depth(mm)

≥2600

Pit depth(mm)

≥300

Product Description

Tianhongyi villa elevator adopts advanced technology to ensure the stable, intelligent and efficient operation of the elevator in terms of traction system and control system, so that you can enjoy the comfort. Low noise, easy to install, let you have a beautiful home environment. Save the design and construction costs of the computer room, so that your building can be fully utilized. Small footprint, safe and reliable. Tianhongyi Villa Elevator is an ideal practical and exquisite elevator for duplex and multi-storey residences. It is also the most ideal means of transportation for the elderly, the disabled and the sick.

Classification Of Villa Elevators

1. Hydraulic drive: hydraulic home elevators belong to the traditional home elevator design. Because of factors such as oil leakage polluting the environment, too much operating noise, and wasting a lot of electricity, they are not in line with the development concept of environmental protection and energy saving of the modern elevator industry and are being phased out by people.Most of them are used for freight elevators or special elevators with large tonnage.

2. Traction drive: because of environmental protection, energy saving and building space saving, the machine room-less traction villa elevator is being widely used by people. Traction drive is divided into gantry structure, backpack structure, strong drive structure and so on. At the same time, the gantry structure of the car system integrates the elevator suspension point, the elevator center of gravity, and the guide rail center into one, and the double-layer car bottom equipped with a shock absorption system makes the elevator operation extremely comfortable. Energy saving and environmental protection make this series of elevators the mainstream product in the current villa elevator market, accounting for about two-thirds of the market share, and is the first choice for villa elevators.

3. Screw drive: The screw elevator adopts a nut and screw drive structure, which is also a machine-roomless elevator. Because the overall structure of the elevator is very compact, it has a high shaft space utilization rate and can realize a car-wallless structure. The car has no damping device, and the comfort and stability of the elevator operation is inferior to that of the traction villa elevator. At present, the market share of this series of products is relatively low, and it can be used in villas and duplexes.

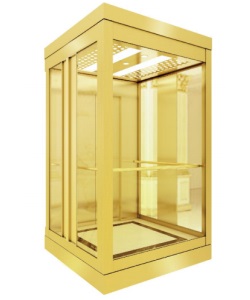

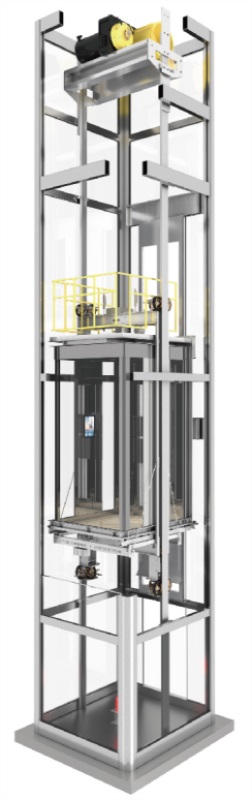

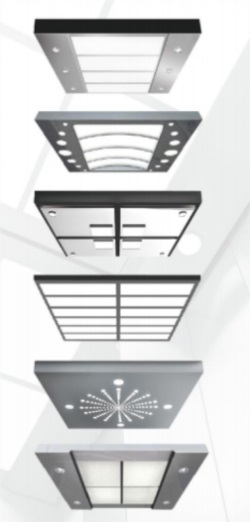

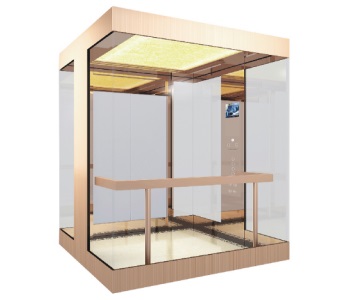

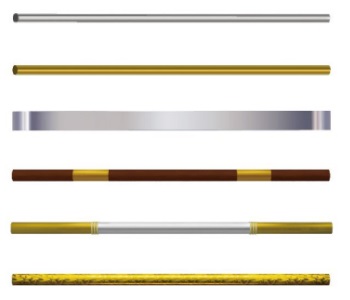

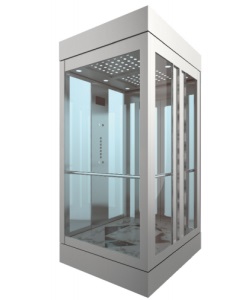

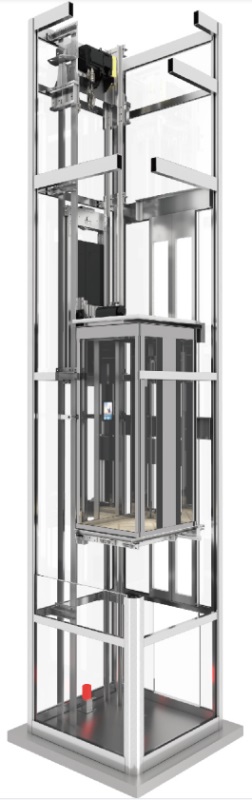

Product Display

3
4
5
7
6
8
9
