Sliding Guide Shoes For Hollow Guide Rail THY-GS-847

Short Description:

THY-GS-847 counterweight guide shoe is a universal W-shaped hollow rail guide shoe, which ensures that the counterweight device runs vertically along the counterweight guide rail. Each set is equipped with four sets of counterweight guide shoes, which are respectively installed on the bottom and upper part of the counterweight beam.


Product Detail

Product Tags

Product Parameters

Rated Speed:≤1.75m/s

Match The Guide Rail:10,16.4

Suitable for heavy side

Product Information

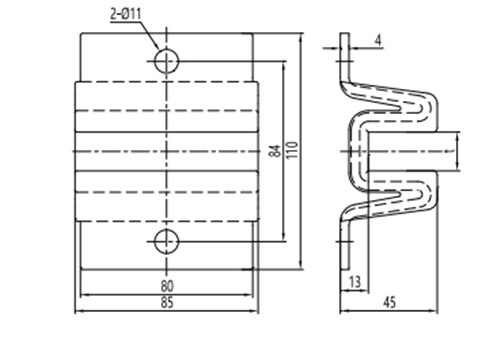

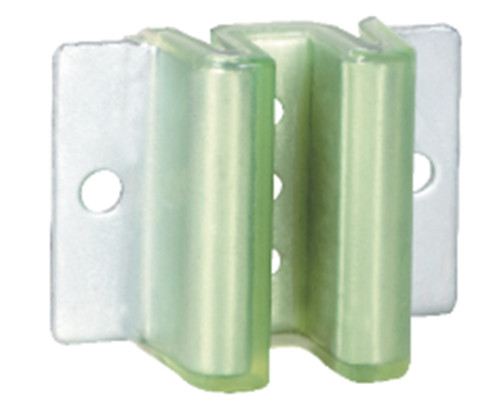

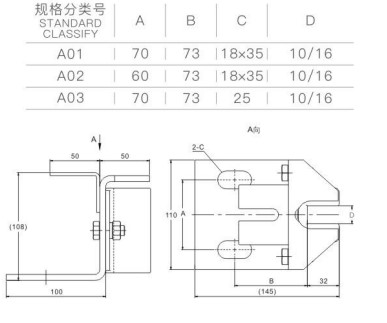

THY-GS-847 counterweight guide shoe is a universal W-shaped hollow rail guide shoe, which ensures that the counterweight device runs vertically along the counterweight guide rail. Each set is equipped with four sets of counterweight guide shoes, which are respectively installed on the bottom and upper part of the counterweight beam. It is mainly composed of single shoe head, oil cup holder and shoe seat. The commonly used hole pitch is 60 long holes, and there are also various hole pitches such as round holes. The single shoe head is made of 4mm steel plate cast polyurethane material, which makes the guide shoe strong and stable while ensuring the groove width, and reduces the noise caused by the friction between the counterweight frame and the guide shoe. The shoe seat is bent with steel plate and sprayed with plastic. There are many styles of installation bottom holes, which are more convenient to install under the premise of ensuring the hole distance; the top of the guide shoe is equipped with an oil cup mounting bracket for easy installation of the oil cup, and the lubricant passes through the felt Evenly apply to the guide rail to make the guide shoe play a role of lubrication. Applicable guide rail width 16mm and 10mm. This guide shoe is an original accessory product. It is suitable for elevators of various brands such as Mitsubishi, Otis, Fujitec, KONE, Schindler, and Brilliant. It is mainly used for elevators with rated speeds below 1.75m/s. The elevator is used for counterweight hollow guide rails.
