Roller Guide Shoes For Home Elevator THY-GS-H29

Short Description:

THY-GS-H29 villa elevator roller guide shoe is composed of a fixed frame, nylon block and roller bracket; nylon block is connected with the fixed frame by fasteners; the roller bracket is connected with the fixed frame through an eccentric shaft; the roller bracket is set up There are two rollers, the two rollers are separately arranged on both sides of the eccentric shaft, and the wheel surfaces of the two rollers are opposite to the nylon block.


Product Detail

Product Tags

Product Parameters

Rated Speed:≤0.63m/s

Match The Guide Rail:10

Suitable For Villa Ladder

Product Information

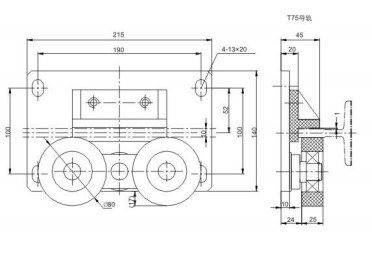

THY-GS-H29 villa elevator roller guide shoe is composed of a fixed frame, nylon block and roller bracket; nylon block is connected with the fixed frame by fasteners; the roller bracket is connected with the fixed frame through an eccentric shaft; the roller bracket is set up There are two rollers, the two rollers are separately arranged on both sides of the eccentric shaft, and the wheel surfaces of the two rollers are opposite to the nylon block. The roller guide shoe for villa elevator has adjustable distance between the roller and the nylon block, which is easy to install. The installation base hole distance is 190*100, the outer diameter of the roller is Φ80, and the PTFE material layer is adopted. Using its low friction factor and good wear resistance, the elevator runs smoothly to reduce the vibration problems in the elevator operation, and it is convenient Adjust, replace, extend its service life, improve ride comfort, reduce the noise generated by the operation of the car, suitable for backpack villa elevators, rated speed ≤ 0.63m/s, guide rail width 10mm, because the roller guide shoes can be used without lubricating oil. Ensure that the car and hoistway are clean and sanitary.
