Sliding Guide Shoe For Sundries Elevator THY-GS-L10

Short Description:

The THY-GS-L10 guide shoe is an elevator counterweight guide shoe, which can also be used as a sundries elevator. There are 4 counterweight guide shoes, two upper and lower guide shoes, which are stuck on the track and play a role in fixing the counterweight frame.


Product Detail

Product Tags

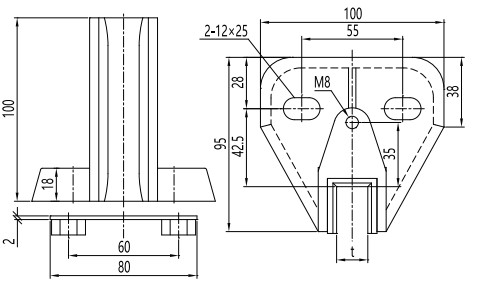

Product Parameters

Rated Speed:≤1.75m/s

Match The Guide Rail:5,10,16.4

Product Information

The THY-GS-L10 guide shoe is an elevator counterweight guide shoe, which can also be used as a sundries elevator. There are 4 counterweight guide shoes, two upper and lower guide shoes, which are stuck on the track and play a role in fixing the counterweight frame. There is a shoe lining (polyurethane nylon material) inside the shoe that is in contact with the three sides of the guide rail, and there is an oil box to lubricate the guide rail. The guide shoe is to guide the elevator to move vertically. The guide shoe is composed of a shoe seat and a shoe lining. The length of the shoe lining is 100mm. It is made of polyurethane and has various colors. Matching guide rail width 5mm, 10mm and 16mm.

Regardless of whether the shoe lining of the rigid sliding guide shoe and the elastic sliding guide shoe is made of iron or nylon bushing, the friction between the shoe lining and the guide rail is still very large during the operation of the elevator. This friction will also increase the load on the traction machine.

Features: Because the guide shoe head is fixed, the structure is simple, and there is no adjustment mechanism. As the running time of the elevator increases, the matching gap between the guide shoe and the guide rail will become larger and larger, and the car will shake during operation, or even appear Impact. Lubrication must be done well.

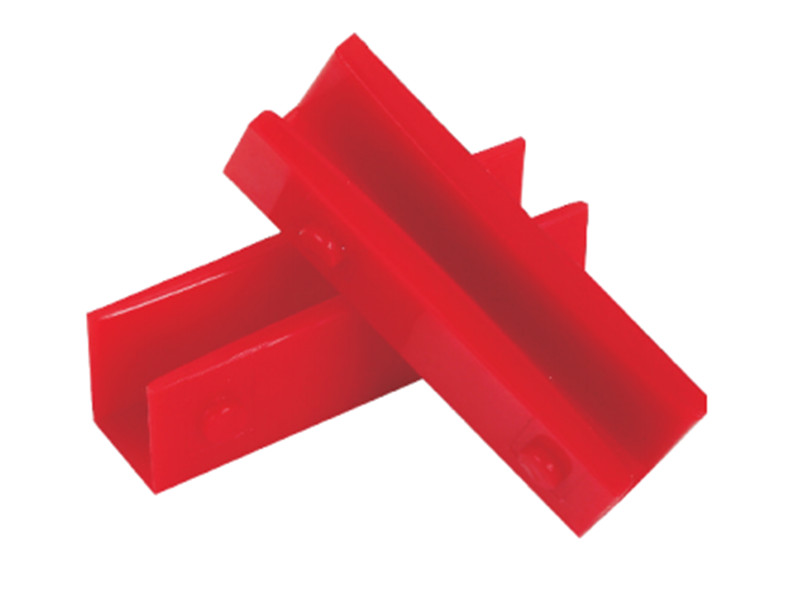

1 (2)

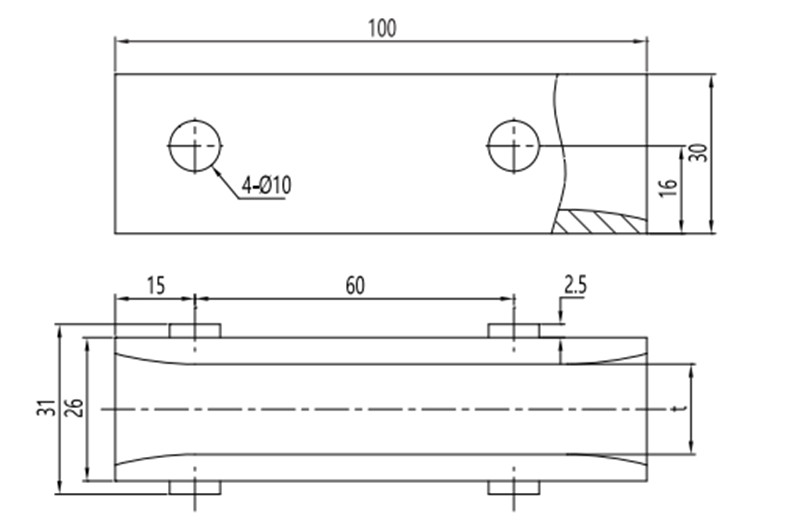

1 (1)
