High Quality Elevator Steel Wire Ropes

Short Description:

The most small-scale passenger elevators used for elevator wire ropes. In commercial residential districts, the elevator wire rope specifications are generally 8*19S+FC-8mm, 8*19S+FC-10mm.


Product Detail

Product Tags

Product Parameters

1.This specification is suitable for speed limiter wire rope, low speed, low load elevator

2.We can also customize according to your requirements.

Nominal Rope Diameter

6*19S+PP

Minimum Breaking Load

Approximated weight

Dual Tensile,Mpa

Single Tensile,Mpa

1370/1770

1570/1770

1570

1770

mm

Kg/100m

kN

kN

kN

kN

6

12.9

17.8

19.5

18.7

21

8

23

31.7

34.6

33.2

37.4

1.Natural fiber core(NFC): Suitable for wire rope of traction machine with rated speed ≤ 2.0m/s

2.Building height≤80M

Nominal Rope Diameter

8*19S+NFC

Minimum Breaking Load

Approximated weight

Dual Tensile,Mpa

Single Tensile,Mpa

1370/1770

1570/1770

1570

1770

mm

Kg/100m

kN

kN

kN

kN

8

21.8

28.1

30.8

29.4

33.2

9

27.5

35.6

38.9

37.3

42

10

34

44

48.1

46

51.9

11

41.1

53.2

58.1

55.7

62.8

12

49

63.3

69.2

66.2

74.7

13

57.5

74.3

81.2

77.7

87.6

14

66.6

86.1

94.2

90.2

102

15

76.5

98.9

108

104

117

16

87

113

123

118

133

18

110

142

156

149

168

19

123

159

173

166

187

20

136

176

192

184

207

22

165

213

233

223

251

1.For IWRC, speed>4.0 m/s, Building height> 100m

2.For IWRF,2.0< speed≤4.0m/ s, Building heigh≤100m

Nominal Rope Diameter

8*19S

Minimum Breaking Load

Approximated weight

Single Tensile,Mpa

1570

1620

1770

IWRC

IWRF

IWRC

IWRF

IWRC

IWRF

IWRC

IWRF

mm

Kg/100m

kN

kN

/

kN

8

26

25.9

35.8

35.2

36.9

35.2

40.3

39.6

9

33

32.8

45.3

44.5

46.7

45.9

51

50.2

10

40.7

40.5

55.9

55

57.7

56.7

63

62

11

49.2

49

67.6

66.5

69.8

68.6

76.2

75

12

58.6

58.3

80.5

79.1

83

81.6

90.7

89.2

13

68.8

68.4

94.5

92.9

97.5

98.5

106

105

14

79.8

79.4

110

108

113

111

124

121

15

91.6

91.1

126

124

130

128

142

139

16

104

104

143

141

148

145

161

159

18

132

131

181

178

187

184

204

201

19

147

146

202

198

208

205

227

224

20

163

162

224

220

231

227

252

248

22

197

196

271

266

279

274

305

300

Product Information

The most small-scale passenger elevators used for elevator wire ropes. In commercial residential districts, the elevator wire rope specifications are generally 8*19S+FC-8mm, 8*19S+FC-10mm. The shopping malls use slightly larger elevator rope specifications of 12mm, 13mm, and load elevator steel rope specifications of 12mm, 13mm, and 16mm in diameter.

In ordering steel wire rope,you are requested to give us complete information as specified below:

1. Purpose:For which rope will be used;

2. Size:Diameter of the rope in milimeter or inches;

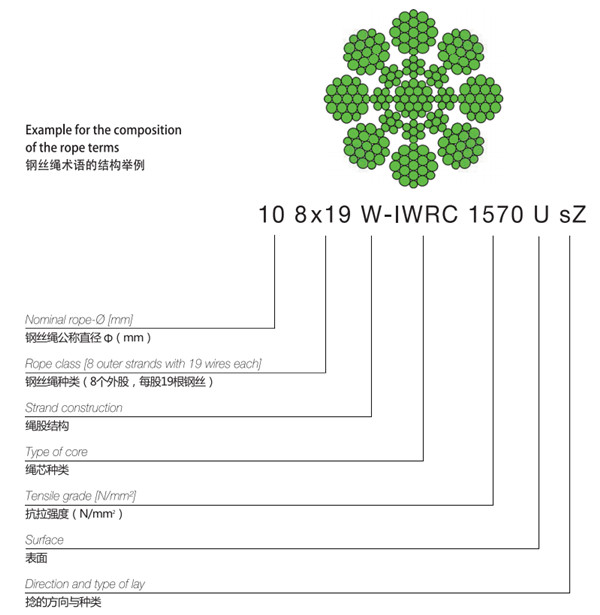

3. Construction:Number of strands,number of wires per strand and type of stand construction;

4. Type of Core:Fiber core(FC),independent wire rope core(IWRC)or independent wire strand core(IWSC);

5. Lay:Right regular lay,left regular lay,Right lang lay,left lang lay,

6. Material:Bright(ungalvanized),galvanized or staninless steel;

7. Grade of Wire:Tensile strength of wires;

8. Lubrication:Whether lubrication is desired or not and required lubricant;

9. Length: length of wire rope;

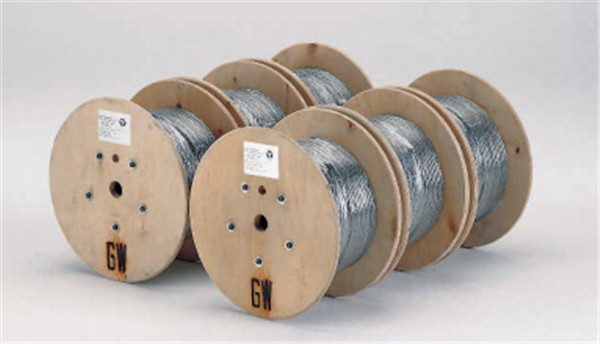

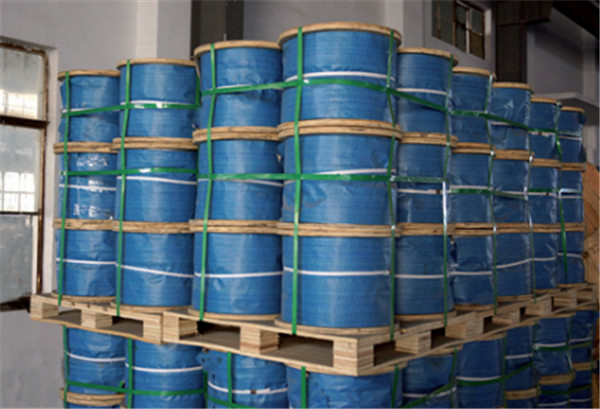

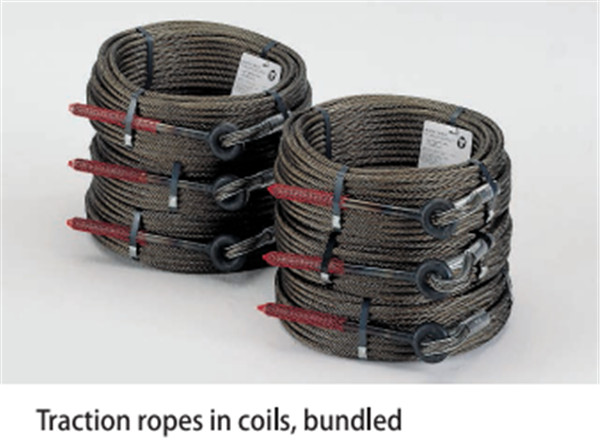

10. Packing:In coils wrapped with oil paper and hessian cloth or on wooden reels;

11. Quantity:By number of coils or reels by length or weight;

12. Remarks:Shipping marks and any other special requirements.

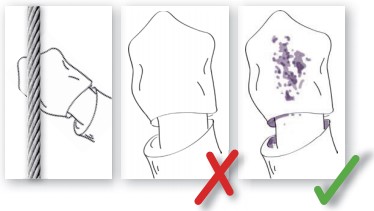

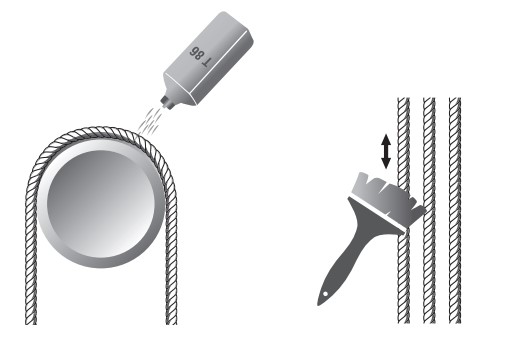

In the course of long-term operation, the lubricating oil on the wire rope will gradually decrease. Therefore, it is necessary for the wire rope to be regularly lubricated, which can extend the service life of the wire rope, and reduce wear and prevent rust by relubricating. Compared with a fully lubricated wire rope, the service life of a dry wire rope can be reduced by up to 80%! The relubrication of the wire rope plays a very important role. We usually choose T86 lubricating oil, which is a very thin liquid that can easily enter the inside of the wire rope. It only needs a brush or a portable 1 liter barrel to spray it. The location of use should be where the wire rope touches the traction sheave or guide wheel, so that the wire rope lubricant can flow into the wire rope more easily.
